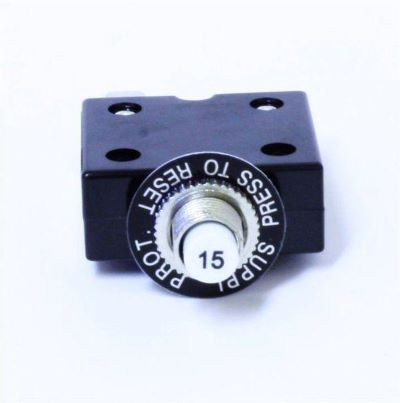

15 amp rated panel mount circuit breaker with a push button reset.
When the circuit breaker trips, the button will pop out to indicate a blown circuit. Once you fix the cause of the short, simply press the button back in to reset the circuit. If the problem still exists, the breaker will trip again.
The 15 amp capacity can provide protection for typical wire sizes of 18, 16 and 14 gauge. The circuit breaker's amperage rating is printed onto the top of the reset button for easy identification. Wires connect to the breaker on the back using the 1/4 inch tabs.
The panel mount breaker's maximum voltage is up to 32 Volts DC and up to 250 volts AC. That means the circuit breaker can be used in 12 and 24 volt electrical systems, as well as 120 and 240 volt AC applications.
Temperature Rating: 125-250 VAC, 32VDC. Meets UL standard 1077 and CSA C22.2 No. 5.1-M91a. RoHS Compliant. This circuit breaker has a black low profile neck.
This item will not be restocked. Quantity available: 100
